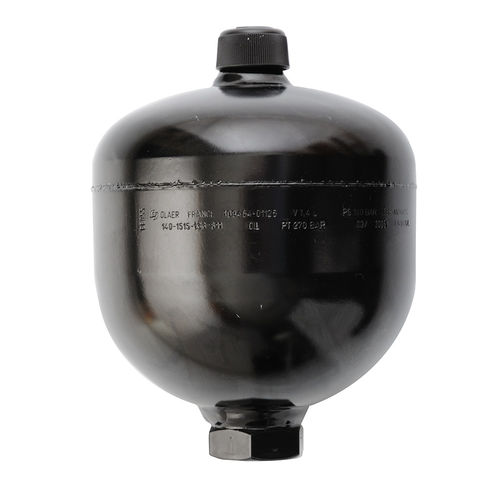

Diaphragm accumulator DA Series

membranecompactlightweight

Diaphragm accumulators are inexpensive, compact and lightweight and are ideally suited where weight and space is an important consideration. The DA diaphragm accumulator offers a reliable and efficient solution for storing energy under pressure and works as an hydraulic spring. Utilizing comprehensive tools and resources including an applications database, CAD/CAM we offer an optimized design and performance membrane accumulatff (all hydraulic accumulators are compliant to 2014/68/EU regulation) Formerly branded as ELM diaphragm accumulators Parker diaphragm accumulators (also referred to as membrane accumulators) are gas-Ioaded accumulators in which separation between the liquid and gas Sides is achieved by a flexible diaphragm. They have a compact and lightweight design are available in 2 elastomer mixes; Nitrile and Hydrin (for Iow temperature working conditions) With a maximum pressure of 350bar (up to 2,8 liters) and volume of 3.5 Litres (up to 250 Bar). DA accumulator range comes With a bonded seal (BS) fluid port With female or male and female fluid connection and M28x1,5 gas connection. Accumulator accessories such as Safety Blocks, Clamps, Lock nut, Charging Sets (VGU/SC-VGU), can aid the safe installation and operation of the accumulators in any hydraulic system. Parker Olaer have developed very sophisticated simulation software to optimize sizing recommendations for hydraulic accumulators. You can download the accumulator sizing software from the Product Support tab. Markets: • Mobile • Industrial • Defense • Energy • Renewable • Marine • Mining • Oil and Gas • Rail
