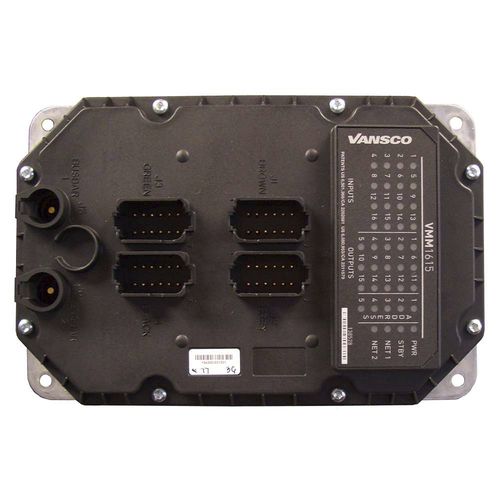

Module multiplexer VMM1615

digitalanalogCAN Bus

Parker’s VMM1615 is a rugged CAN controller with a focus on high power outputs. The high power outputs allow the VMM1615 to control heavy loads, like lights and electric actuators in addition to hydraulic valves. It is able to be the main controller in a range of vehicle markets including agriculture, on-highway trucks and busses, and off-road construction equipment or may be combined with other modules in a large system. The VMM1615 inputs measure analog, digital and frequency signals and outputs suited for hydraulic control, lighting control, or general electrical control. Equipped with a high impact plastic housing and environmentally sealed connectors, this controller is designed for the outdoor environment. The VMM1615 is programmed using VMMS, a ladder logic programming tool that allows customers to develop their own software, making the VMM1615 perfect for any application. Markets: • Construction equipment • Transportation • Agriculture machinery • Material handling equipment Features/Benefits: • Monitors up to 16 inputs - analog, digital or frequency • 6 high-side 10 A outputs • 4 high-side 5 A outputs • 2 high-side 2.5 A outputs • 1 low-side 2.5 A output • 2 solid state relay 1 A outputs • Pulse Width Modulation for proportional valve control • 2 CAN buses Applications: • Bus lighting, kneel and door open control • Rough terrain crane control • Telehandler control
