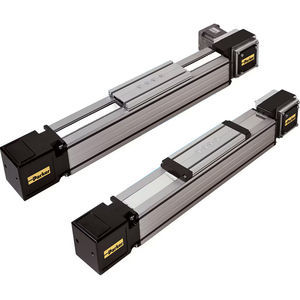

Linear actuator HMRS24

electromechanicalrodlessscrew

Offering extreme configurability and maximized application optimization the HMRS24 screw driven actuator utilizes two square rail bearing guides for maximum moment loading capacity and is ideal for single or multi-axis systems. For payloads up to 26600N Offering extreme configurability and maximized application optimization for industrial markets, Parker Hannifin's High Moment Rodless, electromechanical linear actuator series is one of the most user friendly and versatile actuator lines on the market today. With 5 different frame sizes, 2 different drive train options, multiple mounting, carriage and sensor options, and an IP54 protective cover option, along with a multitude of other customizable features the HMR was truly designed with flexibility in mind. Guided by two square rail bearings, the HMR has enormous moment and payload capacity bundled in a low profile, yet sleek package. Ease of use was also at the core of this new actuator design, by integrating externally accessible lubrication fittings into the carriage that evenly disperse lubricant across the bearing trucks. In addition, there are options for two different chassis profiles, allowing the user to choose between a super-low profile ""basic"" version, or a ""reinforced"" version giving great structural rigidity for long unsupported spans. Features/Benefits: • HMR product family’s 5 profile widths provide over a million standard configurations • Precision ground ball screw for optimal accuracy and repeatability • 2 Profile types - Basic and Reinforced • Tandem carriage option available • Optional sensor locations - Internal (protected under the cover) or External
