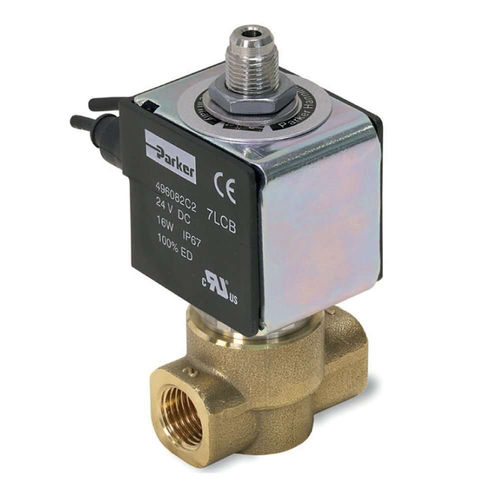

Direct-operated solenoid valve

3-wayNCfor water

The Parker range of 3-way low-lead brass solenoid valves provide superior performance, resulting from the entire stainless steel structure of the valve pilots. The forged body is made of CW510L low-lead brass - all parts listed in this page are NSF169 certified. Compact and robust at the same time, the stainless steel nozzle improves valve life, endurance and resistance to lime-scale build up effect. A wide range of electrical parts can be used with this valve, including IP65 VDE and UL solutions. Typical applications include cold water loading function or hot water-steam on/off control. Markets: • Beverage Features/Benefits: • Extremely efficient against limescale build-up • High performance and low power consumption electrical components • Wide range of configurations and approvals • Strong and robust design • High reliability • Minimize the risk of failures when your equipment is operating • Avoid downtime • Orifice Sizes: Up to 5mm • Flow Factor (KV): Up to 0.56 m3/h • Valve Body: Moulded brass, CW510L UNI EN 12165 • Seals: FDA FKM, Ruby • Sleeve, Plungers and Nozzle: Stainless steel Applications: • Beverage Dispensing & Vending Machines • Water Loading Control of a Boiler • Steam Control • Cold, Hot and Superheated Water Shut-off • Cold Water and Steam Mixing • Steam Pressure Control (pressure switch) • Automatic Water Dispensers
