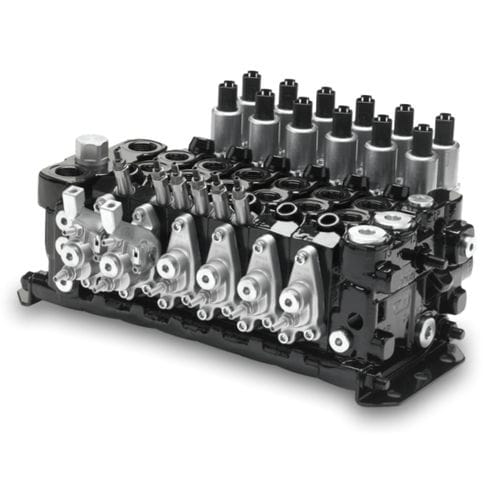

Sectional hydraulic directional control valve L90 series
spoolmanualdirect-operated

Sectional hydraulic directional control valve - L90 series - Parker Hannifin France SAS - spool / manual / direct-operated
Sectional hydraulic directional control valve - L90 series - Parker Hannifin France SAS - spool / manual / direct-operated
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
manual, direct-operated, electro-hydraulic, hydraulically-operated, pneumatically-operated
Other characteristics
compact, proportional, monobloc, modular, sectional, pressure-compensated, normally closed, for high flow rates, normally open
Operating pressure

Min.: 0 bar
(0 psi)

Max.: 350 bar
(5,076.32 psi)

Flow rate

Min.: 0 l/s
(0 us gal/s)

Max.: 2.1 l/s
(33 us gal/s)

Description

Parker L90LS mobile valve is characterized by industry leading properties regarding robustness, control precision and energy efficiency. Parker L90LS is a sectional-built, load sensing, directional control valve for mobile machinery. L90LS has a wide range of selectable functions, offering great flexibility in terms of system structure in simple as well as advanced hydraulic system solutions. L90LS is a result of Parker’s wide experience in mobile hydraulics, offering excellent performance, made with high grade materials and precision manufacturing. L90LS can be equipped with manual, hydraulic or electrohydraulic spool actuators in any combination. Each valve section can be optimized for its particular function in the machinery, with a large range of main spools, pressure relief valves, pressure compensators, signal pressure limiters and other performance enhancing functions. The L90LS hydraulic valve can be constructed in many different designs, with different inlet sections, work sections, end sections and also generic function manifolds for example to obtain proportional pressure control. The L90LS can also be combined with the bigger K220LS directional control valve in order to further optimize functional performance in machinery with large variations in flow requirement. For complete customer-specific functional adaptation and to accommodate every conceivable need in terms of auxiliary function control, the L90LS can be combined with tailor-made function manifolds, consisting of components from Parker's many product divisions.
