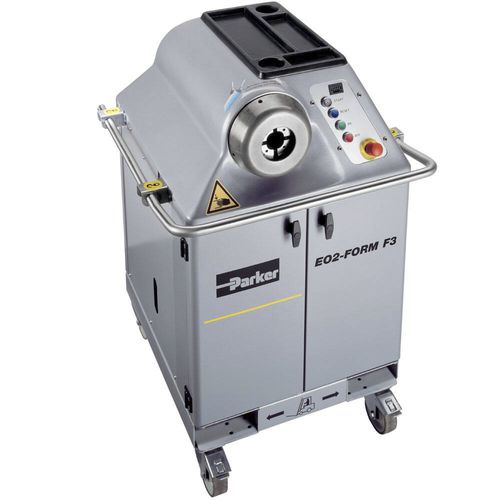

Automatic assembly machine EO2 FORM F3

fittingadjustable

The EO2-FORM-F3 and PRO22 WorkCenters are based on EO2-FORM technology and are specially designed for workshop application. They are suitable for EO tube fittings to DIN EN ISO 8434-1, EO-3 fittings and hose connections to DIN 71550. The F3 WorkCenter is completely automatic in operation and has been designed for practical workshop application. Opening the doors turns the machine into a fully equipped WorkCenter. The tool storage area is located in the front – the tools are neatly laid out and easily viewed. No other workbenches or tool racks are required. Special convenient-to-handle tools make machine set-ups and tool changes easier. Thanks to automatic tool recognition, the operator has only to press the start button, whereupon the tube is formed into the correct shape in one pass. This means that EO2-FORM and EO-3 connections are very simple to manufacture. The F3 WorkCenter is so reliable because of its powerful hydraulic drive and robust forming tools. Compared with the F3 WorkCenter, the PRO22 production machine works considerably more efficiently and can machine tighter tube bends. Because of its powerful drive and efficient cooling, continuous mass production on a shift basis is provided for. In addition, the machine is especially quiet and vibration-free in operation. Small to medium tubes from 6 to 22 mm can be accommodated on the new machine. The compact assembly head enables even tight tube bends to be machined. Markets for EO2 FORM F3 WorkCenter: • Hydraulic presses • Cranes and lifts • Heavy machinery • Shipbuilding • Offshore • Steel hydraulics construction
