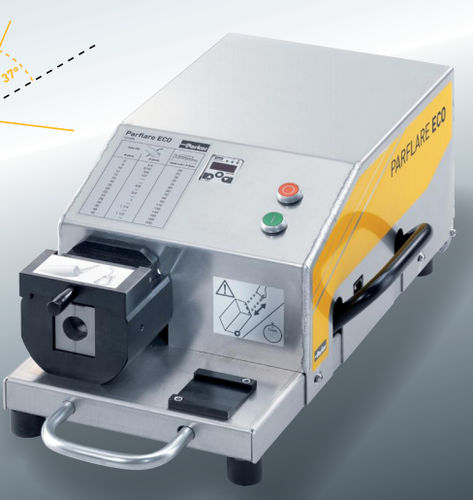

Semi-automatic assembly machine PARFLARE ECO

fittingcompact

It’s also a piggy bank! Parflare ECO – Economical. Simple. Safe. - A full-fledged Triple-Lok® fitting flaring machine at an economical price. - The Parflare ECO is a mobile machine that flares tube to 37° for Parker Triple-Lok® hydraulic fittings. - This electro-hydraulic machine is simple to operate, with the flaring pressure being set via a digital display. The machine is simple to use, rugged and easy to transport. - Because of these features, the Parflare ECO is the ideal machine for hydraulic service technicians. Application: Flaring tubes for Parker Triple-Lok® hydraulic connectors Procedure: Axial forming with flaring pin Flaring: 37° to DIN EN ISO 8434-2 Tube material: Steel and stainless steel tubing Tube diameter: 6 to 42 mm / ¼“ to 1 ½“ Speed: 15 to 20 sec. cycle time/approx. 20 to 30 sec. total cycle time Economical production quantity: max. 100 assemblies per day Dimensions: 750 x 360 x 300 mm Weight: 30 kg Electrical power rating: 230V single phase 50 Hz 700W Application areas: – For the repair and maintenance of hydraulic tubing systems in both workshop and field operations. Advantages for the service technician: – professional flaring – energy and time savings due to the electric drive – simple operation – portable and light – rugged and mobile Purchasing advantages: – inexpensive – economical mode of operation – existing tooling can be used – unbeatable price-toperformance ratio The machine is perfectly suited to regular use, but not to high volume production.
