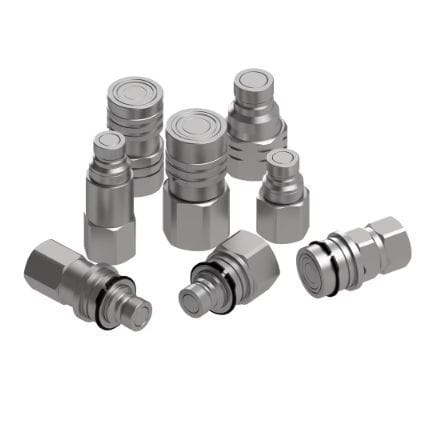

Hydraulic coupler IF series

Parker Flat-Face quick coupling system with body size 1/8" up to 1" and ISO 16028 for applications up to 450 bar. Flat Face Quick Coupling FEM / IF series is produced according to the ISO 16028 and is compatible with other series complying with the same standard. These couplings offer a leakage free disconnection with a minimal oil loss during uncoupling. Thanks to the valve design, the coupling has a minimum pressure drop, and thus achieves maximum cost-effectiveness. The standard version of series FEM / IF is available made of steel or stainless steel. Markets: - Agriculture - Automotive - Oil and Gas - Process - Power Generation - Transportation - Vocational and Municipal - Defense - Industrial - Machine Tooling - Material Handling - Construction Features/Benefits: - Safety locking feature as standard to prevent unintentional uncoupling - FEC with the pressure eliminator enable effortless connection under static pressure (up to rated working pressure) - FEMP and FECP with pushpull features is suitable for multi-plates or when coupling is fixed on an application Applications: Easy dry break connection / disconnection in hydraulic systems, both mobile and industrial applications - Tractors - Trucks - Wheel loaders - Military vehicles - Hydraulic tools - Presses - Molding machines
