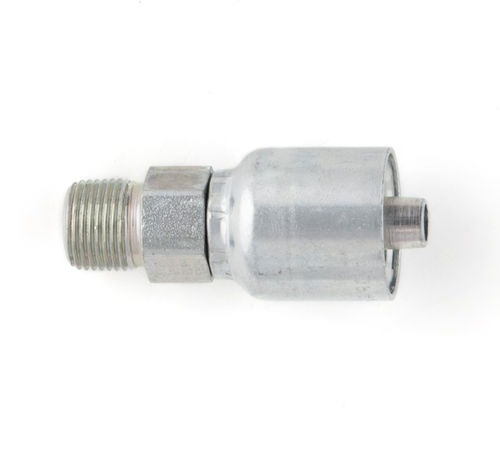

Hydraulic fitting 77

crimp90° angle45° angle

Crimp-style 77 Series hydraulic hose fittings from Parker Hannifin are cost-effective, permanent, bite-the-wire-style fittings for high-pressure applications. Designed for use with Parkrimp crimpers, 77 series fittings require less push-on force and are easy to assemble. Their compact, one-piece construction delivers better value, flow, and reduced heat and pressure loss, as well as reduced complexity. Compatible with a wide range of constant working pressure hoses, 77 Series fittings are engineered for efficiency, safety, and performance. When paired with Parker’s No-Skive hose, 77 Series fittings can be assembled without removing the outer hose cover. Available in multiple materials and a wide assortment of end configurations, 77 series fittings are offered in sizes from ¼ inch to 2 inches. Markets: • Military • Construction • Forestry • Oil Field Service • Industrial • Mining Features/Benefits: • Metric hex • Easy push on force • Multiple materials available, such as steel and stainless steel • Wide range of end configurations • One piece reduces complexity and leakage path • No-Skive technology offers easy, efficient, and safe production processes Applications: • Petroleum base hydraulic fluids and lubricating oils Compatible Hoses: • - 387 (-20 through -32 only) • - 487 (-20 through -32 only) • - 787 (-8 through -32 only) • - 797 (-8 through -32 only)
