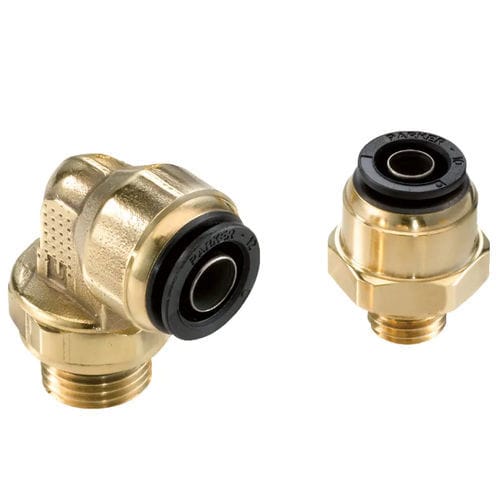

Compressed air fitting C8UNPMB12M12

screw-in90° angleDIN

To meet severe and demanding applications such as pneumatic circuits in rail and road transportation, Prestomatic 2 fittings conform to the international standards offering robustness, reliability and mechanical resistance. Features/Benefits: - Versatility • Extreme compactness for space-saving • High robustness • Excellent mechanical properties adapted to severe working conditions • Integrated metallic tube support reinforces tube alignment and tube retention for: excellent resistance to vibration sealing ensured over time increased resistance to tube removal • Fully re-usable to reduce maintenance costs - High Performance • Positive hold by an innovative gripping ring design allowing absorption of vibration and pulsating pressure • Twist-free assembly allowing free tube rotation even under pressure and high resistance to tube expansion • Extreme temperature resistance: up to -50°C for increased lifespan - Reliability • 100% leak-tested in production • Date coding to guarantee quality and traceability • Suitable with flexible tubing in braking system Markets: • Rail • On-Highway Vehicles Applications: • Compressed Air Conveying from Very Low to High Temperature • Suitable for Onboard Applications Requiring Mechanical Resistance • Air Braking Systems • Air Suspension • Chassis • Engine Braking • Gearbox • Pantograph • Motricity Control Technologies: • Pneumatic Fittings • Instant Fittings • Quick Fittings • Rail Transportation • Road Transportation Regulations: Fully adapted to transportation braking system applications with tubing: • DIN 74324-1 • DIN 73378 • NF-R12-632-2
