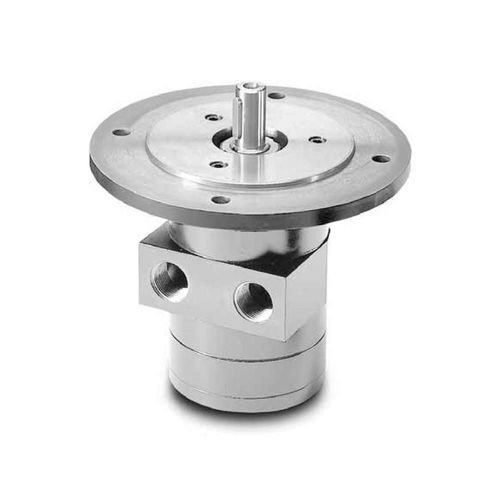

Planetary gear air motor P1V-A

helicalrotary vanestandard

P1V-A is a range of air motors intended for heavy and demanding applications. The motor housings are made from painted cast iron, and the components sealed to permit operation in damp and dirty environments. The range contains six different sizes with power ratings of 1600, 3200, 5000, 6000, 9000 and 18000 Watts. Motors with power ratings from 1600 to 6000 Watts can be supplied with built-in gearboxes, either planetary, helical (spur) or worm drives, to provide the correct speed of rotation and torque. ATEX certified versions for environments with an explosive atmosphere are available for models P1V-A160, P1V-A320, P1V-A500, P1V-A600. Basic motors: All pneumatic motors are equipped with spring loaded vanes as standard, which gives the motors very good starting and low speed running characteristics. The simple construction of the motors makes them very reliable, with long service life and they are easy to service. Motors with planetary gears: A P1V-A combined with a planetary gear has small installation dimensions, low weight in relation to performance, free installation position, flange mounting as standard, in line output shaft and high efficiency. They are available with shaft speeds ranging from 190 to 600rpm, with torques ranging from 32 to 84Nm. Motors with helical (spur) gears: A P1V-A combined with a helical gear has high efficiency, simple installation with flange or foot, and competitive pricing. They are available with shaft speeds ranging from 18 to 625rpm, with torques ranging from 24 to 2460Nm. Oil-bath gears mean that the installation position must be decided beforehand.
