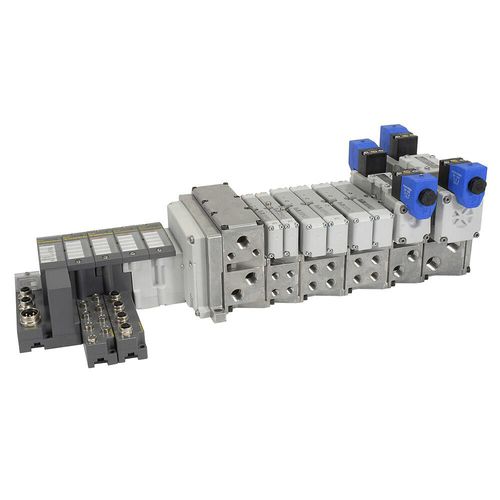

Digital I/O module TURCK BL67

analogEtherNet/IPModbus TCP

The Turck Network portal is a complete network communication offering for H Series ISO and H Series Micro valves and is suitable for use with many PLC's. I/O options are digital and analog I/O, 16 / 32 solenoid control, short circuit protection on inputs, current sensing outputs. Subnet options are CANopen and DeviceNet. Programmable communication modules are available for small machine control. Up to 32 solenoids on main valve manifold and Devicenet subnet allows an additional 32 solenoids per node, 63 nodes maximum. CANopen expansion allows an additional 64 solenoids per expansion, 5 expansions maximum. 256 maximum inputs and outputs can be directly connected to each communication module. Devicenet Subnet allows an additional 256 I/O per node, 63 nodes maximum, and third party DeviceNet modules can also be used. SXG and diagnostic electronic modules have each point isolated and all other electronic modules are isolated from the backplane. Markets: • Automotive • General Industrial • Material Handling • Metals/Foundry • Packaging • Plastics Features/Benefits: • Used with valve series H series Micro and H series ISO • Available protocols: DeviceNet, EtherNet/IP, PROFIBUS-DP, PROFINET, Modbus/TCP, CANopen • I/O options: digital inputs/outputs, analog inputs/outputs, 4 IO-Link Master module, 16 solenoid control, 32 solenoid control, short circuit protection on inputs, current sensing outputs, SXG and diagnostic electronic modules have each point isolated o All other electronic modules are isolated from the backplane • Bus expansion o Devicenet Subnet allows an additional 256 I/O per node, 63 nodes maximum, and third party DeviceNet modules can be used
