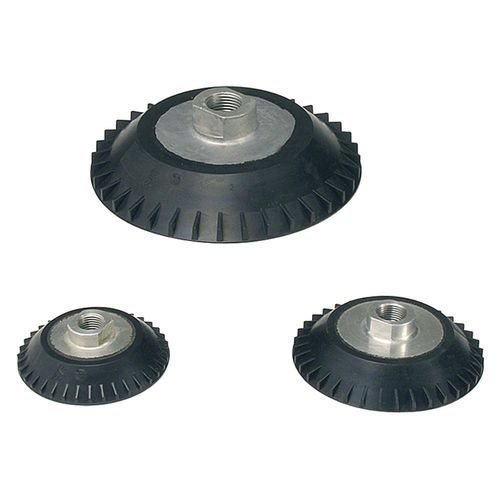

Flat suction cup P5V-CFS

nitrilefittingvacuum

P5V-CFS vacumm pads are ideal for applications where the product may flex when being lifted. All cups have a double sealing lip and cleats to increase holding capacity. Cup sizes: 50 to 100mm P5V-CFS style cups are ideal for applications where the product may flex when being lifted. All cups have a double sealing lip and cleats to increase holding capacity. The top of the cup has a ribbed outer lip to prevent it from rolling over the surface to be lifted and in sheet metal handling applications they help prevent it from being cut by the metal. Dual sealing lips provide two seals for vacuum. As the product flexes, the outer lip seal may break, but the inner lip seal will hold the degree of vacuum for continued lifting capacity. In these types of applications, sizing should be done on the inner diameter cup dimension. Cup sizes range from 50 to 100 mm diameters. Markets • Factory automation • Machine tools • Miscellaneous industrial • Moulding • Packaging machinery • Printing & marking equipment • Vehicle assembly facilities Features/Benefits • Double sealing lips for flexible sheet handling • Vacuum cup grooves on underside increase holding area • Resists acceleration and deceleration shear forces • Strong low profile for fast response • Metal insert fitting for stable vertical and horizontal lifts Applications • Flexible surfaces • Thin surfaces PERFORMANCE CHARACTERISTICS VACUUM CUP TYPE: Double Lip Flat VACUUM CUP DIAMETER: 50 | 100 | 150 mm VACUUM CUP MATERIAL: Nitrile MOUNTING OPTION: Female Thread PORT SIZE: 1/8" | 3/8" | 1/2" PORT TYPE: BSPP
