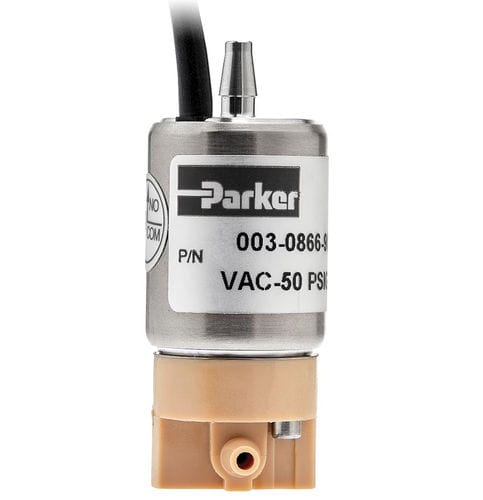

Direct-operated solenoid valve 003-0 series

2/3-wayNCwater

Parker's Series 3 family of liquid valves provide an inert wetted path for your aggressive liquids including bleach and other harsh solvents. The Series 3 solenoid valve is constructed of inert materials suitable for liquids including bleach and saline, for applications in analytical chemistry, clinical diagnostics and ink jet printing. These 2-Way and 3-Way valves handle high flow in a small valve with pressures up to 100 psi and no metal-to-metal sliding surfaces, ensuring a long life and trouble free operation. The series 3 valve also offers a pressure rating that exceeds most diaphragm isolation valves. A unique and time-proven design ensures that fluids are contained within the valve, preventing damage to other components. Markets: • Clinical Diagnostics • Analytical Chemistry Features/Benefits • Wetted parts are inert plastic (PEEK, PTFE), stainless steel, and elastomer (FKM or EPDM) • Chemically resistant to moderate acids, bases, bleach, and saline • Leak safe design ensures that fluids are contained within the valve preventing damage to the other components in the instrument • High flow in small package while providing fast cycle times • Resistant to crystallization and particulates • No sliding metal-to-metal surfaces minimizes wear of moving parts • Direct-acting design does not require pressure or vacuum to operate • RoHS compliant Applications: • Control of bleach, reagents, inks, and other aggressive media • Wash solutions • Waste removal
