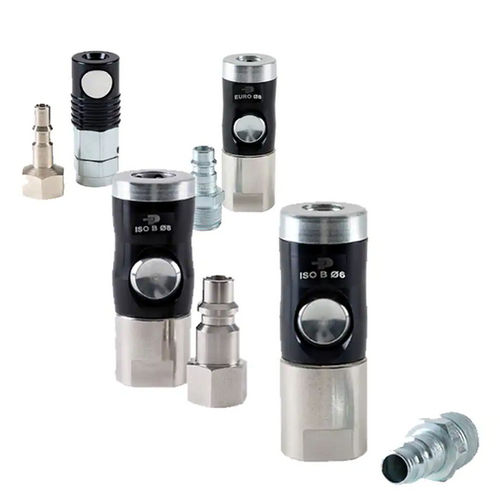

Pneumatic fitting KP

quickISONBR

Parker's Safety Quick Coupling Sériés KP is a safety coupling with pushing button integrating self-venting system according to ISO 6150 B, ISO 6150 C and EURO. The self-venting takes place during disconnection in 2 steps - no risk of pressurized hoses being tossed around. When the pushing buttind is pressed one time, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by pressing the button again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 - - increased safety standards in the work place and make the use easy. The right plug for self-venting sériés KP can be found as followings : - - ISO 6150 B; DN 5,5 : Plug sériés 23 - - ISO 6150 B; DN 8 : Plug sériés 30 - - ISO 6150 C; DN 5,5 : Plug sériés 18 - - ISO 6150 B; DN 8 : Plug sériés 84 - - EURO; DN 7,4 : Plug sériés 25 Markets: - - Machinery Construction - - Automotive - - Industrial process factory Features/Benefits: - - Safety coupling with self-venting mechanism - - No whiplash effect due to the self-venting which takes place during disconnection - - Easy to connect and discconnet with one hand Applications: - - Workshops - - Cleaning
