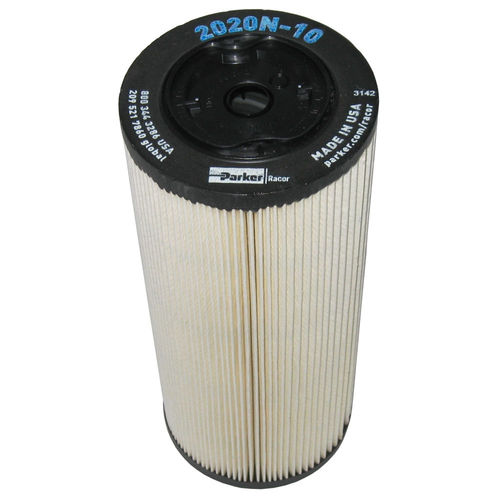

Water filter cartridge 20 series

fuelfinecellulose fiber

Diesel engine injector tolerances are measured in microns and the latest engines inject fuel at pressures over 30,000 psi (207 kPa). Under these conditions the smallest particle of dirt or water can score and erode precision components; leading to damage to engines, operations and profitability. Racor Turbine Series FF/WS have exceptional water removing efficiency for both bulk and emulsified water, low restriction of fuel flow and high dirt-holding capacity. The heart of the system is the three coalescing and filtration stages powered by the patented Aquabloc® filter element. Stage 1 Separation: As fuel enters the filter assembly, it moves through the (stationary) turbine centrifuge and spins off large solids and water droplets which fall to the bottom of the collection bowl. Stage 2 Coalescing: Small water droplets bead-up on the surface of the conical baffle and cartridge element. When heavy enough, they fall to the bottom of the collection bowl. Stage 3 Filtration: Proprietary Aquabloc® cartridge elements repel water and remove solid contaminants from fuel at 98% efficiency of their micron rating. Water collecting on the surface of the element coalesces into larger drops that fall into the collection bowl. Only genuine Racor cartridge filter elements feature Aquabloc® Engineered Media for ultimate engine protection. Ordering Options: 1. Choose housing type: 500, 900, or 1000 series housings. (Choose height first if the housing type is not known) 2. Choose Rated Micron: • “2” micron Aquabloc® element rated at 98% efficiency at 4 microns • “10” micron Aquabloc® element rated at 98% efficiency at 10 microns
