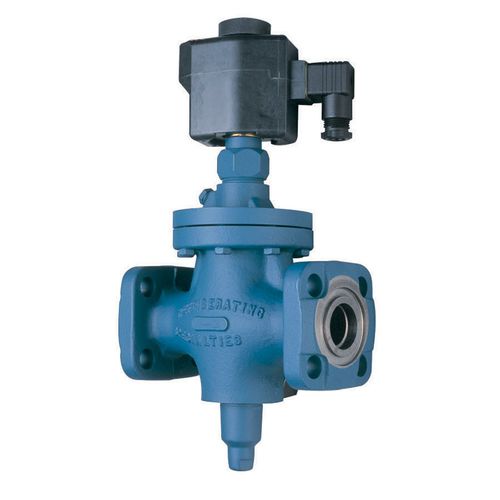

Pilot-operated solenoid valve S5A

2-wayfor gasstainless steel

The Type S5A is a pilot operated, heavy duty, steel- bodied solenoid valve. Technical Specifications Operating Features: - Standard Operation, External Actuating Pressure Supply Strainer Type: - Without Strainer, With Strainer Coil Type: - Please Configure Part for Coil Type Specifications Check Valve Included: - None, With CK-4 Valve Material: - Standard Material, Meets Pressure Equipment Directive (PED) Parker’s S5A is a low pressure drop gravity closing valve ideal for medium temperature suction applications. The low-pressure drop provided by the S5A ensures that losses are kept to a minimum, which is especially important in refrigeration suction lines. This heavy-duty solenoid valve is suitable for Ammonia and other refrigerants, certain oils and other fluids approved for use in refrigeration. The S5A is a pilot operated semi-steel bodied valve. The valve may be opened by means of the manual opening stem for servicing or in case of electrical power failure. The Type S5A Solenoid Valve is furnished with FPT: Internal NPT (U.S. Standard Taper Pipe Thread), Socket Weld, Weld Neck or ODS (solders over copper tubing of given diameter) connections. The valve may be easily removed from between the flanges for servicing. Features and Benefits: • Standard Coil Housing Meets NEMA 3R and NEMA 4 - Rain Tight • Coil Housing Surpasses NEMA Salt Spray Test • Plunger-Needle Assembly Same for S4A, S5A, S6N, S6A, S8F • Replaceable Piston Plug Assembly • Molded Class “F” Coil Construction • Manual Opening Stem Application: • Suction Lines • NOT for Hot Gas Lines or other applications where high pressure drops will exist when valve is open.
