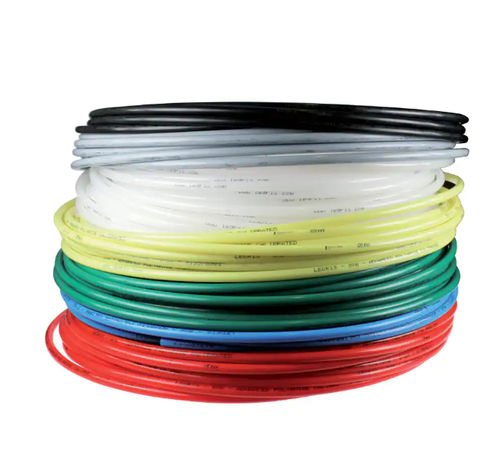

Compressed air semi-rigid tube 1001P00 01 22
PAflexibleabrasion-resistant

Compressed air semi-rigid tube - 1001P00 01 22 - Parker Stratoflex - PA / flexible / abrasion-resistant
Compressed air semi-rigid tube - 1001P00 01 22 - Parker Stratoflex - PA / flexible / abrasion-resistant
Add to favorites
Compare this product


Characteristics

Use
for compressed air
Material
PA
Other characteristics
flexible, abrasion-resistant, chemical-resistant, silicone-free
Inner diameter

Max.: 13 mm
(0.512 in)

Min.: 1.8 mm
(0.071 in)

Outer diameter

Max.: 14 mm
(0.551 in)

Min.: 3 mm
(0.118 in)

Pressure

50 bar, 58 bar
(725.189 psi, 841.219 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Delivered length

Max.: 1,000 m
(3280'10" )

Min.: 25 m
(82'00" )

Description

Tried-and-tested for industrial or vehicle applications, PA tubing guarantees excellent durability due to its stable long-term mechanical properties. Special grade of semi-rigid polyamide manufactured according to our Eco-Design approach. Parker Legris' spécial grade of semi-rigid polyamide is manufactured according to our Eco Design approach for higher performance. Features/Benefits: - - Tried-&-Tested Material • - Good chemical and humidity résistance • - Excellent material stability (mechanical and chemical) • - Continuous calibration during production for excellent reliability • - Two material grades: rigid and semi-rigid • - Bio-based semi-rigid material - - Versatility & Performance • - Wide range of working pressure and temperature • - Good vibration absorption • Remaining length marking • Large choice of colours to facilitate circuit identification • Silicone-free
