Water tube 1100Y08 01
for crude oilbeveragefor gas

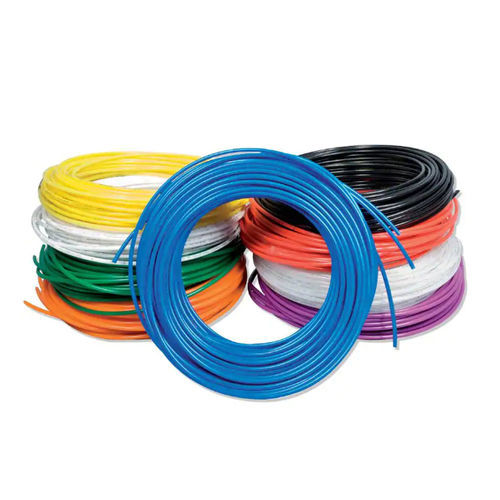

Water tube - 1100Y08 01 - Parker Stratoflex - for crude oil / beverage / for gas
Water tube - 1100Y08 01 - Parker Stratoflex - for crude oil / beverage / for gas
Add to favorites
Compare this product


Characteristics

Use
for water, for crude oil, beverage, for gas
Material
polyethylene (PE)
Applications
for the chemical industry, for the food industry
Other characteristics
chemical-resistant, silicone-free
Inner diameter

Min.: 2 mm
(0.079 in)

Max.: 11 mm
(0.433 in)

Outer diameter

Min.: 4 mm
(0.157 in)

Max.: 16 mm
(0.63 in)

Pressure

16 bar
(232.06 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 95 °C
(203 °F)

Delivered length

25 m, 75 m, 100 m, 150 m, 300 m
(82'00" , 246'00" , 328'01" , 492'01" , 984'03" )

Description

Parker Legris offers two types of polyethylene tubing: "Advanced PE" 50% reticulated and Low Density PE. Our range of "Advanced PE" is designed for demanding environments, especially that of water treatment, without compromising operator safety. Features/Benefits: - - Advanced PE • - 50% reticulated material • - Best balance between flexibility and pressure/temperature résistance • - Résistant to a wide range of aggressive chemicals • - Approved for contact with food and beverages • - Silicone-free - - Low Density PE • - Excellent résistance to aggressive and corrosive agents • - Good technical trade-off • - Food-grade material • - Silicone-free Markets: • - Food and Beverage • - Industrial Chemical Processing • - Oil and Gas • - Water Applications: • - Aggressive Fluids Conveying • - Applications Subjected to Intensive Cleaning Technologies: • - PE Tubing • - Polyethylene Tubing • - Advanced PE • - Industrial Tubing Technical Characteristics: Fluids: • - Advanced PE: Water, beverages and other fluids • - Low Density PE: Industrial fluids Materials: • - Advanced PE: High quality polyethylene: 50% reticulated PE, 50% low density PE (44 shore D) • - Low Density PE: Low Density Polyethylene (44 shore D)
