Compressed air tube 1470P06 04 13
PAprotectiontransport

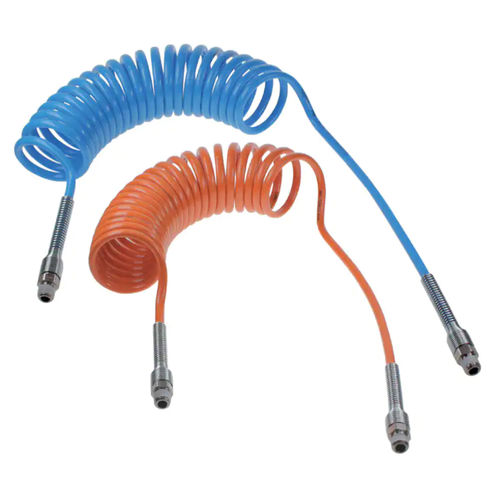

Compressed air tube - 1470P06 04 13 - Parker Stratoflex - PA / protection / transport
Compressed air tube - 1470P06 04 13 - Parker Stratoflex - PA / protection / transport
Add to favorites
Compare this product


Characteristics

Use
for compressed air
Material
PA
Applications
protection, transport, cleaning, lubrication
Other characteristics
multiple, silicone-free, spiral, pre-assembled
Inner diameter

Max.: 12.7 mm
(0.5 in)

Min.: 3.1 mm
(0.122 in)

Outer diameter

Max.: 15.8 mm
(0.622 in)

Min.: 4.7 mm
(0.185 in)

Pressure

20 bar
(290.075 psi)

Temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Delivered length

Max.: 22.5 m
(73'09" )

Min.: 2 m
(6'06" )

Description

Parker Legris recoil tubing has a lasting memory after multiple uses, offering an alternative to reels for excellent ergonomics and space saving. The pre-assembled tubes are equipped with a protection spring, preventing damage to the ends. Features/Benefits: - Excellent Mechanical Properties • Low pressure drop • Good chemical compatibility • Self-retracting • Identical technical performance to PA tubing • Silicone-free - Comprehensive Range • Ready-to-use • Various colours for circuit identification • Available with pre-assembled connectors Markets: • Machine Tools • Primary Metal Refining and Processing • Miscellaneous Manufacturing • Vehicle Assembly Facilities • Transportation Applications: • Compressed Air and Lubricants Conveying • Maintenance Workshop • Industrial Cleaning • Car Washing • Power Hand Tools Technologies: • Polyamide Tubing • PA Tubing • Recoil Tubing • Industrial Tubing
