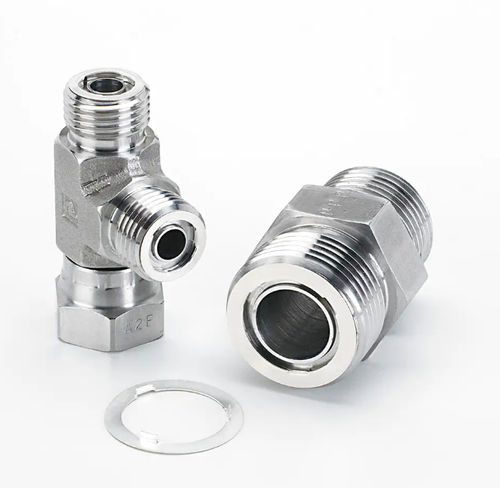

Fuel fitting Xtreme

screw-inTcross

Parker Stainless Steel Seal-Lok Xtreme métal face seal fittings offer reliable leak-free, corrosion résistant connections for applications that have extremely low or high températures or chemical compatibility concerns where elastomeric sealing cannot be used. Utilizing the proven O-ring Face Seal (ORFS) fitting design, these métal face seal fittings offer zéro clearance, résistance to over torque and vibration résistance. Seal-Lok Xtreme are high-temperature, but also cryogenic fittings proven to exceed industry standards and perform in the most demanding applications. Markets: • - Alternative Fuels • - Power Gen • - Cryogenic Features/Benefits: • - Patented métal face seal with temperature range of -328° F to 1200° F • - Includes dry film lubricated tube nuts for anti-galling • - SAE J1926 boss port ends have patented métal seal • - Highly résistant to over-torque, eliminating damage from over-tightening, creating unlimited reusability • - Fiat sealing surface allows for ease of installation with zéro clearance • - Superior résistance to vibration • - Unlimited reusability • - Fittings and métal seals are manufactured from SAE/AISI316/316L stainless steel materials for corrosion résistance • - Parker's Robust Port Stud on adjustable ports is manufactured with a longer locknutvirtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof Testing completed: • - Thermal cycle and shock • - Hélium Mass Spectrometer • - Leak and burst pressure • - Rotary Flex • - Thread Galling • - Over Torque • - Thermal Shock FEA • - Passed Bonfire Testing in accordance with ANSI/CSA NGV 2
