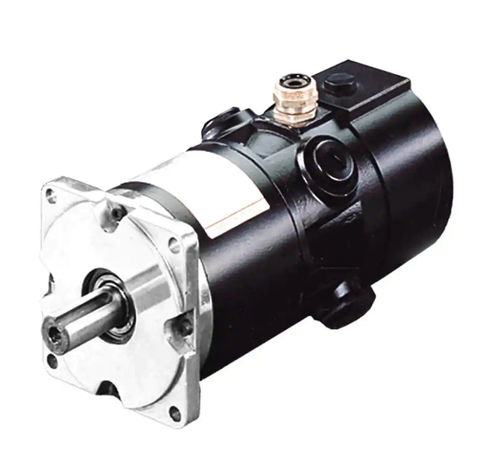

Direct current servomotor RS series

brushed24 V48 V

Using high energy magnets, RS-series DC motors combined with RTS drives are particularly suitable for applications which require a very compact solution or a high dynamic level. Applications: • - Factory Automation • - Life Science Diagnostic • - Textile Machines • - Radiation Hardend Technical Overview: • - Protection Level : IP40 (RS1-RS4) | IP54 (RS5-RS6) • - Feedback Sensors : Tacho | Encoder | Resolver • - Marking : CE (except RS6) Features: • - Shaft - - RS1 to RS4: Smooth full shaft - - RS5 and RS6: Full keyed shaft • - 2nd Shaft End - - RS1 to RS3: possibility to mount standard tacho or encoder - - RS5 and RS6: possibility to mount standard tacho, adaptation for encoder mounting in option • - Output Cables -1 m without connector • - Options - - brake (RS2 to RS6) / - tachometer - - adaptation 2nd shaft end for encoder mounting (RS5 and RS6) Advantages: • - High performance characteristics • - Excellent low-speed functioning Tacho, encoder resolver • - High compactness • - Very long service life • - Rare earth magnets • - Tacho, encoder resolver and brake in option
