Coalescing separator

oilwaterfor wastewater treatment

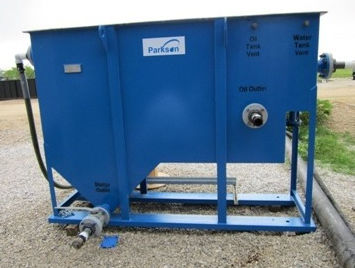

Parkson’s Model SRC and SRM Oil/Water Separators offer a reliable, compact, and economical solution to a wide array of oil/water separation applications. The Oil/Water Separators remove free, non-emulsified oil and settleable solids to produce an effluent with less than 10 mg/l of oil droplets 20 micron or larger. The influent flow first enters an oleophilic (affinity for oil, not for water) slant-rib coalescing pack where oil droplets adhere to the ribbed pack and merge with other droplets which grow in size and rise to the liquid surface. The design of the coalescing pack and oil attracting characteristics of the media ensures the highest degree of surface contact and coalescing efficiency. Accumulated oil at the surface displaces water and begins to overflow a weir into an oil reservoir where it can either flow out by gravity or can be pumped. The coalescing pack also removes solids via the 55° angle of the pack’s ribs. Once oil and solids are removed, the collected water flows under a baffle into a water effluent chamber where it is discharged through a flanged connection.
