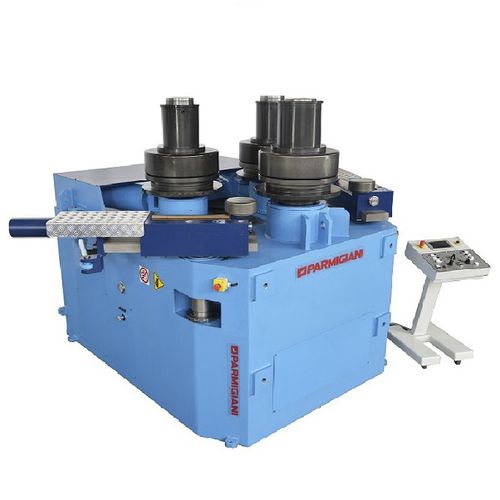

Hydraulic bending machine PLANET 45

tubeprofileCNC

■ Machine combined design, for working with vertical and horizontal axis. ■ N° 3 driving rolls (all). ■ Fully hydraulic drive: Rolls driven by low speed hydraulic motor + planetary reduction gear. ■ Hydraulic adjustment of the two lower rolls independent of each other (double prebending). ■ Hydraulic unit with pilot operated check valves to maintain constant the lower rolls position during bending-phase. ■ All welded steel frame, monobloc type for added strength and rigidity, stress relieved after welding. ■ Shaft in alloyed high-strength chrome-nickel forged steel (heat treated), mounted on long life grease lubricated self-alignment spherical roller bearings. ■ Bending rolls in High Tensile alloyed Forged Steel, heat treated. ■ N° 2 Lateral guiding rolls, each one adjustable in four directions. ■ Total protection from overloads by hydraulic pressure relief valves. ■ Electric and Hydraulic equipment by first class European manufacturers. ■ Centralized control panel with low voltage control designed for "easy-service", portable to permit optimum location for operator convenience and safety. ■ Control panel with push button controls for all functions.
