3-axis CNC machining center AERO
verticalrotating tablegantry

3-axis CNC machining center - AERO - Parpas - vertical / rotating table / gantry
3-axis CNC machining center - AERO - Parpas - vertical / rotating table / gantry
3-axis CNC machining center - AERO - Parpas - vertical / rotating table / gantry - image - 2
3-axis CNC machining center - AERO - Parpas - vertical / rotating table / gantry - image - 3
3-axis CNC machining center - AERO - Parpas - vertical / rotating table / gantry - image - 4
3-axis CNC machining center - AERO - Parpas - vertical / rotating table / gantry - image - 5
3-axis CNC machining center - AERO - Parpas - vertical / rotating table / gantry - image - 6
3-axis CNC machining center - AERO - Parpas - vertical / rotating table / gantry - image - 7
3-axis CNC machining center - AERO - Parpas - vertical / rotating table / gantry - image - 8
3-axis CNC machining center - AERO - Parpas - vertical / rotating table / gantry - image - 9
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
gantry, rotating table
Machined material
for steel
Spindle mount
HSK-100-A, ISO 50, HSK-63-A
Applications
for the automobile industry, for the aeronautical industry, for heavy-duty machining
X travel

Max.: 30,000 mm
(1,181.1 in)

Min.: 5,000 mm
(196.85 in)

Y travel

Max.: 2,500 mm
(98.43 in)

Min.: 1,500 mm
(59.06 in)

Z travel

Max.: 7,600 mm
(299.21 in)

Min.: 5,000 mm
(196.85 in)

Rotational speed

Max.: 30,000 rpm
(188,496 rad.min-1)

Min.: 7,000 rpm
(43,982 rad.min-1)

Power

Max.: 100 kW
(135.96 hp)

Min.: 30 kW
(40.79 hp)

Work feed X-axis

Max.: 90,000 mm/min
(59 in/s)

Min.: 0 mm/min
(0 in/s)

Work feed Y-axis

Max.: 90,000 mm/min
(59 in/s)

Min.: 0 mm/min
(0 in/s)

Work feed Z-axis

Max.: 90,000 mm/min
(59 in/s)

Min.: 0 mm/min
(0 in/s)

Description

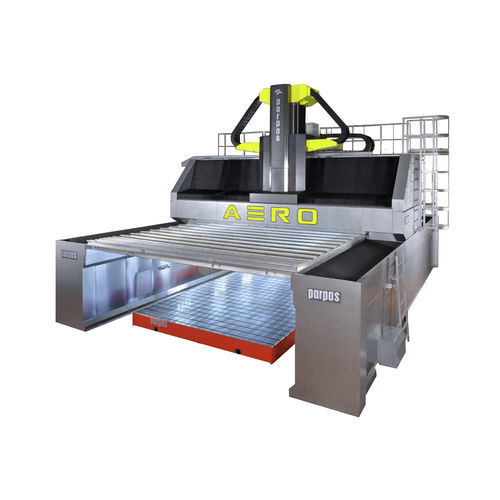

The AERO is the line of medium/large size gantry machines. The AERO is the line of medium/large size gantry machines. It is dedicated to 3 – 5 axis high speed machining as well as heavy duty machining on hard materials (steel, inconel, titanium, etc). The AERO machine can be configured with an automatic head or electrospindle change system, allowing both roughing and finishing operations in kind of materials. Together with all these features, the integration of turning tables or pallet changing systems makes the XS extremely efficient and flexible in all application areas such as: automotive, aviation, space, general engineering and power generation.
