3/5-axis CNC machining center DIAMOND LINEARuniversalgantryfor molds
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3/5-axis
- Spindle orientation
- universal
- Structure
- gantry
- Applications
- for molds, for matrices
- Other characteristics
- high-speed, with linear motor
- X travel
1,500 mm
(59.06 in)- Y travel
2,200 mm
(86.61 in)- Z travel
1,000 mm
(39.37 in)- Rotational speed
20,000 rpm
(125,664 rad.min-1)- Power
29 kW
(39.43 hp)- Table load capacity
22,500 kg
(49,604 lb)- Overall length
7,950 mm
(313 in)- Overall width
5,400 mm
(212.6 in)- Overall height
5,200 mm
(204.7 in)
Description

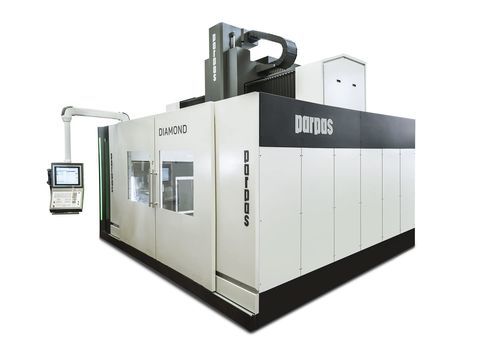

DIAMOND LINEAR is a gantry style machining centre with 3 or 5 axis for high speed moulds/dies machining as well as aerospace jobs. It features a monobloc structure with a gantry moving saddle and stationary workpiece. Machine available also in configuration "Linear", with linear motor for 3 machine axes and torque motor for rotary axes.
