Stirred-tank reactor 4530 series

laboratoryhigh-pressure

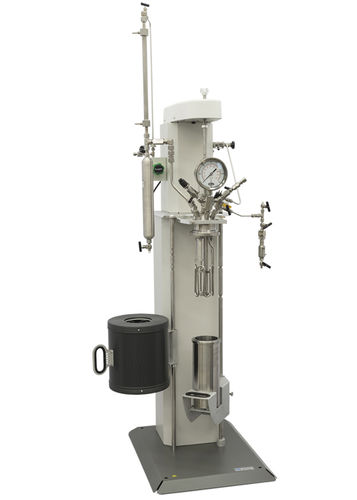

Series 4530 1-2L Floor Stand Reactors can be configured for polymer studies, modified to fit your needs, relocated when not in use, and are available in high pressure versions. Reactors Configured for Polymer Studies. The floor stand reactors in this series are mounted on a sturdy stand which will accommodate larger stirrer drive motors and stronger power trains that are generally not available for the bench top models. With these options it is possible to provide the high torque and low stirring speeds required for work with polymers, slurries, and other mixtures with viscosity of 1 million centipoise and more. Reactors Requiring Extensive Modifications. Floor stand mountings provide a good base for reactor modifications and for the addition of accessories, such as: condensers, packed columns, special motors, custom heaters, jacketed vessels, automatic valves or regulators, and many other fittings. Both fixed head and moveable vessel designs are available. An optional pneumatic cylinder lift is available for fixed head models. These reactors are available with an FKM O-ring seal for operating temperatures to 225 °C, and FFKM O-ring for temperatures to 300 °C, or with a flat, PTFE gasket for operating temperatures up to 350 °C maximum. High Pressure (HP) versions. These floor stand reactors are also available in an HP version up to 3000 psi (200 bar) at 300 °C.
