Stirred-tank reactor 4580 series

laboratoryhigh-pressure

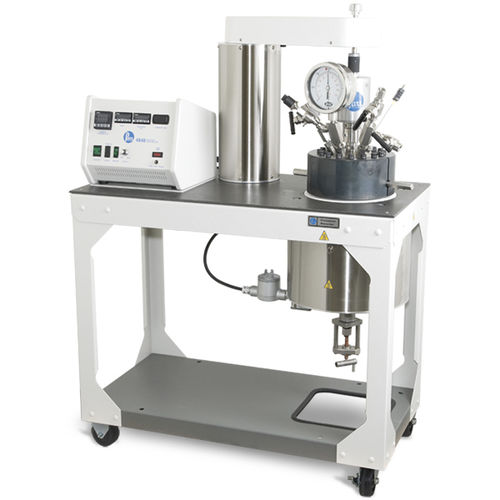

Parr offers a number of different reactors in the 4580 Series in a variety of sizes and with different mountings for operating pressures to 3000 psi (200 bar) and temperatures to 500 °C. 4581 4582 Reactors These 1 gallon (3.75 L) and 1.5 gallon (5.5 L) reactors are designed for 3000 psi (200 bar) maximum pressure with a 500 °C maximum working temperature and mounted on movable carts. 4583 4584 Reactors These are 1 gallon (3.75 L) and 1.5 gallon (5.5 L) fixed head reactors mounted on floor stands with pneumatic lift. All of these reactors have been designed with suitable valves, fittings and modifications to the vessel itself to operate at the higher temperature and pressure ratings. Flat, flexible graphite (FG) gaskets are used for temperatures in the higher range to 500 °C. These can be replaced with PTFE gaskets for procedures in which the temperature will not exceed 350 °C. All cart and floor stand models use ceramic fiber heaters to achieve the higher operating temperatures.
