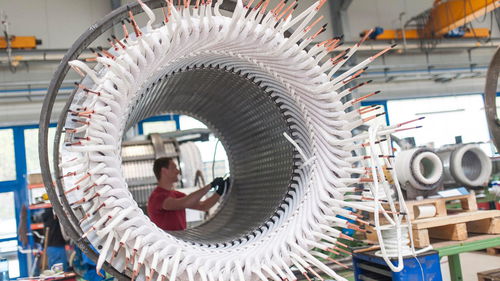

Synchronous permanent magnet motor stator

for synchronous motorcustom

STATOR WINDINGS We offer different stator windings for your generators and electric motors. Three-phase mush winding • In single-layer, two-layer or special design • State-of-the-art manufacturing technologies, e.g.: Automatic winding machines, pull-in machines, slot folding machines, and welding equipment • Manual winding is also offered • Insulation techniques: Resin-Rich system, polyester VPI or epoxy VPI (vacuum pressure impregnation) Technical specifications • Mean winding length up to 3.5 m • Maximum weight up to frame size 800: 8 t • Manual windings for the frame sizes 150 - 800 • Pulling in of the windings for the frame sizes 132 - 450 (for series) • High-temperature windings for short-time overtemperatures • (400 °C/2 h; 600 °C/1 h) • Mush wire slip ring rotors up to 6 t • Mush wire rotor windings • HV mush windings up to 6.6 kV • Converter-compatible windings • Stranded-wire windings • Further winding types and larger dimensions and weights possible upon request Three-phase form-wound windings • Smaller dimensions primarily for traction machines • Coil dimensions are possible up to a fish length of 5.6 m • Insulation techniques: Resin-Rich system, polyester VPI or epoxy VPI (vacuum pressure impregnation) Technical specifications of form-wound coils in general • Starting from stator inner diameters of 300 mm • Spread angle: 0 ... 140° • Chord (spacing between the slots): 120 ... 1,200 mm (up to less than 200 mm hand bandaging) • Length of the straight core part: 280 ... 3,500 mm • Cross-section of the straight core part: 5 x 15 mm ... 25 x 70 mm (but max. 1,400 mm)
