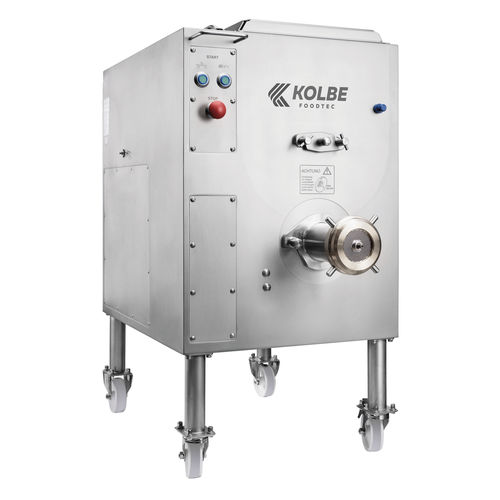

Industrial meat mixer grinder MW32-80

automatic

The MW is the more powerful model in the 80 liter range. Due to its stronger drive, the mixer mincer processes parts of meat up to -5°C effortlessly and is best suitable for portioning. Because the Kolbe Foodtec mixer mincers, starting with the MWK32/114-80 models, are also available cooled, they are optimal for the production of kebab. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Enterprise E32 Perforated plate-Ø 100 mm Hopper volume 80 Ltr. Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 5,5 kW Motor mixer drive / Protection system IP55 0,75 kW Nominal current at 400 V – Main drive 11,4 A Nominal current 400 V – Mixer drive 2,3 A Conductor size 6 mm² Fusing at 400 V (A lazy) 25 A External dimensions (W x D x H) 685 x 1237 x 1325 mm Input height 1268 mm Lower housing heigt (with cover) 591 (533) mm Noise level 67,8 db (A) Weight (net.) ~415 – 425 kg One speed for working worm and mixing arm / stainless steel machine / stainless lock nut / combi hook spanner / push-button-control / mashine mobile with 2 swivel and 2 fixed castors / cable connection with CEE phase plug Portioning line control / mixing time preselection / variable speed (stepless) / hopper cooling / foot-pedal off-switch / outlet protection cover / footstep
