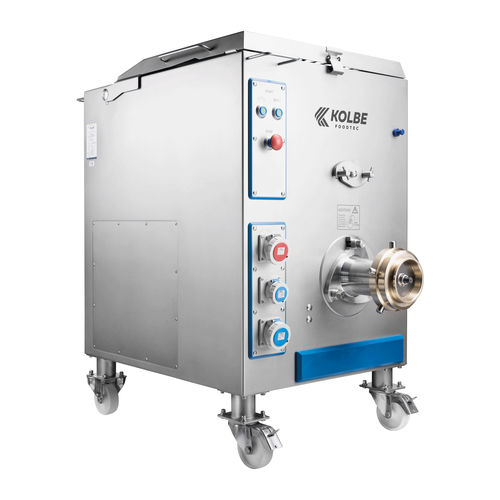

Industrial meat mixer grinder MW52-120

automatic

This model is one of the bigger mixer mincer that are suitable for portioning. Due to its bigger cutting system and dimension of the worm, the mincer is able to process bigger parts up to a temperature of -8°C effortlessly. The MW52-120 is used wherever the pretension to the batch size requires a hopper of 120 liters. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Enterprise E52 Perforated plate-Ø 130 mm Hopper volume 120 Ltr. Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 7,5 kW Motor mixer drive / Protection system IP55 1,1 kW Nominal current at 400 V – Main drive 15,2 A Nominal current 400 V – Mixer drive 2,6 A Conductor size 6 mm² Fusing at 400 V (A lazy) 32 A External dimensions (W x D x H) 923 x 1350 x 1345 mm Input height 1269 mm Lower housing heigt (with cover) 512 (464) mm Noise level 67,8 db (A) Weight (net.) ~520 – 530 kg One speed for working worm and mixing arm / stainless steel machine / stainless lock nut / combi hook spanner / push-button-control / mashine mobile with 2 swivel and 2 fixed castors / cable connection with CEE phase plug Portioning line control / mixing time preselection / increased motor capacity 10kW / variable speed (stepless) for 7,5kW / variable speed (stepless) for 10kW / feeding hopper with safety frame / hopper cooling / foot-pedal off-switch / outlet protection cover / footstep / hoist feed loader FD200
