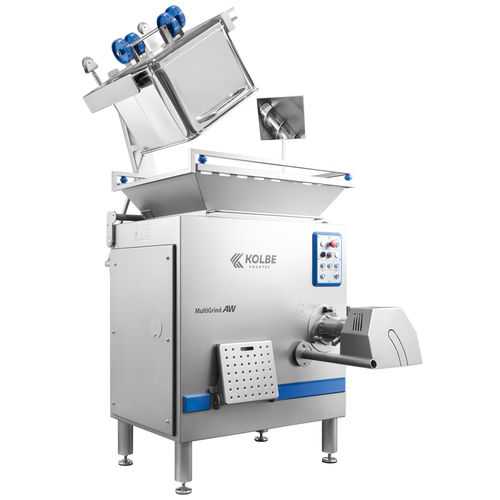

Meat mixer mincer AW52-240
automatic

Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 2
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 3
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 4
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 5
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 6
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 7
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 8
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 9
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 10
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 11
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 12
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 13
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 14
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 15
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 16
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 17
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 18
Meat mixer mincer - AW52-240 - Paul Kolbe GmbH Foodtec - automatic - image - 19
Add to favorites
Compare this product


Characteristics

Food product
meat
Other characteristics
automatic
Output

3,000 kg/h
(6,614 lb/h)

Description

The automatic crossfeed grinders with their strong drives meet the highest demands on processing and hourly output. They are very suitable for the processing of big meat parts, fresh and frozen up to −16°C. The MultiGrind grinders can be equipped with the Enterprise cutting system in sizes E52 or E56 or the Unger cutting system in sizes 130 or 160. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Enterprise E52 Perforated plate-Ø 130 mm Total hopper volume ~360 Ltr. External dimensions (W x D x H) 1478 x 1541 x 1975 mm Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 15 (22) kW Motor feeding drive / Protection system IP55 1,5 kW Motor loosening device drive / protection system IP55 1,5 kW Nominal current at 400 V – Main drive 28,5 (40,5) A Nominal current at 400 V – Feeding drive 3,1 A Nominal current at 400 V Mixing and loosening device drive (opt.) 3,1 A Conductor size 10 (16) mm² Fusing at 400 V (A lazy) 40 (50) A Input height 1978 mm Lower housing height (with cover) 720 mm Noise level 68,8 db (A) Weight (net.) ~950 – 1050 kg Stainless steel machine / feeding hopper with safety frame / outlet protection cover / stainless lock nut / push-button-control / hydraulic worm ejection / socket wrench SW 24 / combi hook spanner / I-speed version / 4 height adjustable anti vibration metal-feet / feeding worm prefilling function / cable for main connection
