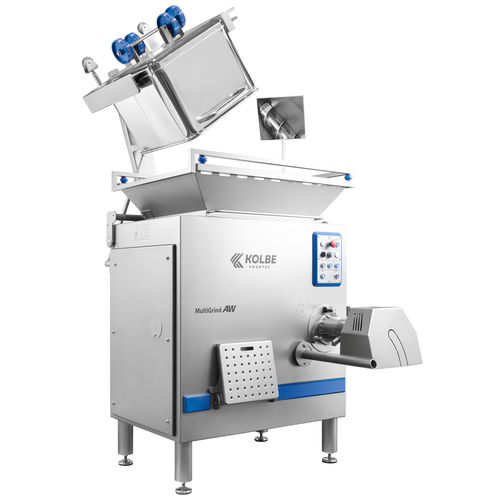

Meat mixer mincer AW56-240

automatic

The automatic crossfeed grinders with their strong drives meet the highest demands on processing and hourly output. They are very suitable for the processing of big meat parts, fresh and frozen up to −16°C. The MultiGrind grinders can be equipped with the Enterprise cutting system in sizes E52 or E56 or the Unger cutting system in sizes 130 or 160. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Enterprise E56 Perforated plate-Ø 152 mm Total hopper volume ~360 Ltr. External dimensions (W x D x H) 1478 x 1541 x 1975 mm Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 30 (22) kW Motor feeding drive / Protection system IP55 1,5 kW Motor loosening device drive / protection system IP55 1,5 kW Nominal current at 400 V – Main drive 54 (40,5) A Nominal current at 400 V – Feeding drive 3,1 A Nominal current at 400 V Mixing and loosening device drive (opt.) 3,1 A Conductor size 25 (16) mm² Fusing at 400 V (A lazy) 63 (50) A Input height 1978 mm Lower housing height (with cover) 733 mm Noise level 68,8 db (A) Weight (net.) ~1000 – 1100 kg Stainless steel machine / feeding hopper with safety frame / outlet protection cover / stainless lock nut / push-button-control / hydraulic worm ejection / socket wrench SW 24 / combi hook spanner / I-speed version / 4 height adjustable anti vibration metal-feet / feeding worm prefilling function / cable for main connection Chopping shaft – capacity 1,5kW / loosening device – capacity 1,5 kW / variable speed (stepless) of working worm 30kW / hoist feed loader FD 200 / attached swivel arm feeding HFD 200 / tool trolley for equipment and tools
