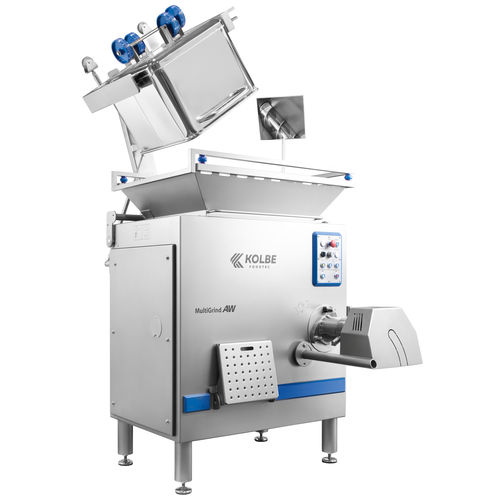

Meat mixer mincer AWM56-240

automatic

The automatic crossfeed mixer grinders with their strong drives meet the highest demands on processing and hourly output. They are equipped with a mixing arm and are very suitable for the processing of meat parts, fresh and frozen up to −16°C. Fresh meat can be mixed very well with other meat types and/or ingredients. In addition, different types of meat can be mixed.. The MultiGrind grinders can be equipped with either the Enterprise cutting system in sizes E52 or E56 or the Unger cutting system in sizes 130 or 160. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Enterprise E56 Perforated plate-Ø 152 mm Total hopper volume ~360 Ltr. External dimensions (W x D x H) 1478 x 1529 x 1975 mm Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 30 (22) kW Motor feeding drive / Protection system IP55 1,5 kW Motor mixer drive / protection system IP55 1,5 kW Nominal current at 400 V – Main drive 54 (40,5) A Nominal current at 400 V – Feeding drive 3,1 A Nominal current at 400 V Mixing and loosening device drive (opt.) 3,1 A Conductor size 25 (16) mm² Fusing at 400 V (A lazy) 63 (50) A Input height 1978 mm Lower housing height (with cover) 733 mm Noise level 68,8 db (A) Weight (net.) ~1000 – 1100 kg Stainless steel machine / feeding hopper with safety frame / outlet protection cover / stainless lock nut / push-button-control / hydraulic worm ejection / socket wrench SW 24 / combi hook spanner / I-speed version / 4 height adjustable anti vibration metal-feet / feeding worm prefilling function / cable for main connection / mixing device (mixing arm) with separate drive / autoreverse function
