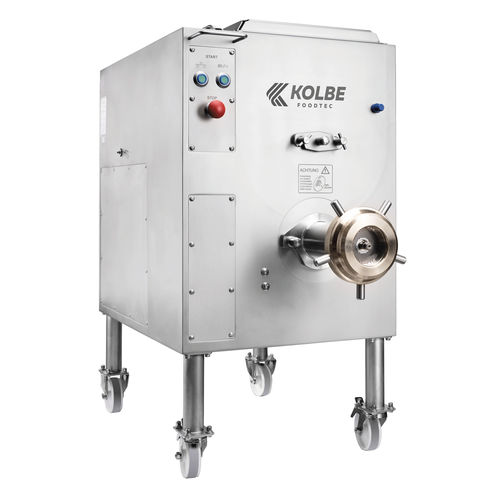

Industrial meat mixer grinder MW114-80

automatic

The MW is the more powerful model in the 80 liter range. The processing of meat parts up to -5°C is no problem for the mincer due to its stronger drive. Kolbe Foodtec mixer mincers, starting with the MWK32/114-80 models, are optionally available with a stepless speed regulation and are therefore not only suitable for the processing of minced meat, but also for the production of cooked sausage. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Unger D114 Perforated plate-Ø 114 mm Hopper volume 80 Ltr. Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 5,5 kW Motor mixer drive / Protection system IP55 0,75 kW Nominal current at 400 V – Main drive 11,4 A Nominal current 400 V – Mixer drive 2,5 A Conductor size 6 mm² Fusing at 400 V (A lazy) 25 A External dimensions (W x D x H) 777 x 1302 x 1325 mm Input height 1268 mm Lower housing heigt (with cover) 570 (533) mm Noise level 67,8 db (A) Weight (net.) ~425 – 435 kg One speed for working worm and mixing arm / stainless steel machine / stainless lock nut / combi hook spanner / push-button-control / mashine mobile with 2 swivel and 2 fixed castors / cable connection with CEE phase plug Portioning line control / mixing time preselection / variable speed (stepless) / hopper cooling / foot-pedal off-switch / outlet protection cover / footstep / KOLBE dynamic separating system KDS114
