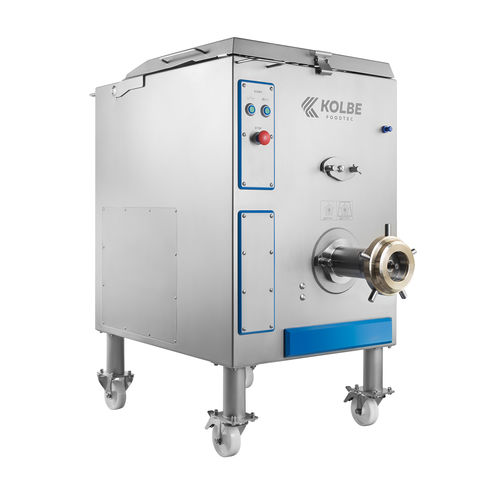

Industrial meat mixer grinder MW114-120

automatic

The MW114-120 is the optimal mixer mincer for bigger batches. Its hopper of 120 liters makes the mincer suitable for big self-service-stores, bigger butcheries and the meat wholesale. The processing of meat parts up to a temperature of -5°C is no problem for this mincer. Due to the optionally available stepless speed regulation the MW114-120 is not only suitable for the processing of minced meat, but also for the production of cooked sausage. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Unger D114 Perforated plate-Ø 114 mm Hopper volume 120 Ltr. Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 5,5 kW Motor mixer drive / Protection system IP55 1,1 kW Nominal current at 400 V – Main drive 11,4 A Nominal current 400 V – Mixer drive 2,6 A Conductor size 6 mm² Fusing at 400 V (A lazy) 25 A External dimensions (W x D x H) 923 x 1390 x 1345 mm Input height 1269 mm Lower housing heigt (with cover) 511 (464) mm Noise level 67,8 db (A) Weight (net.) ~515 – 525 kg One speed for working worm and mixing arm / stainless steel machine / stainless lock nut / combi hook spanner / push-button-control / mashine mobile with 2 swivel and 2 fixed castors / cable connection with CEE phase plug Portioning line control / mixing time preselection / variable speed (stepless) / hopper cooling / foot-pedal off-switch / outlet protection cover / footstep / KOLBE dynamic separating system KDS114 / hoist feed loader FD200
