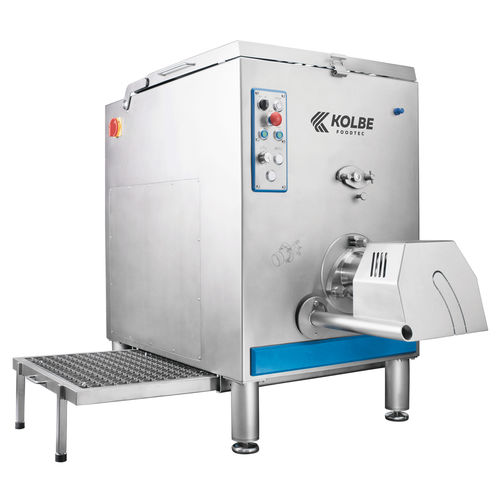

Industrial meat mixer grinder MW160-200

automatic

The next bigger MW model of our mixer mincer range. By default this mincer is equipped with a integrated foot step and has a stepless speed regulation. The MW160-200 is applicable wherever the batch size is bigger and a hopper of 200 liters is needed. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Unger G160 Perforated plate-Ø 160 mm Hopper volume 200 Ltr. Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 18,5 kW Motor mixer drive / Protection system IP55 1,5 kW Nominal current at 400 V – Main drive 34,5 A Nominal current 400 V – Mixer drive 3,85 A Conductor size 10 mm² Fusing at 400 V (A lazy) 50 A External dimensions (W x D x H) 777 x 1302 x 1325 mm Input height 1443 mm Lower housing heigt (with cover) 476 mm Noise level 68,8 db (A) Weight (net.) ~850 – 950 kg One speed for working worm and mixing arm / stainless steel machine / stainless lock nut / outlet protection cover / combi hook spanner / push-button-control / cable for main connection / 4 height adjustable anti vibration metal-feet / built-in extendable footstep Mixing time preselection / increased motor capacity 22kW / variable speed (stepless) of working worm for 18,5kW or 22kW / precutter retain unit / tool trolley for equipment and tools / KOLBE dynamic separating system KDS160
