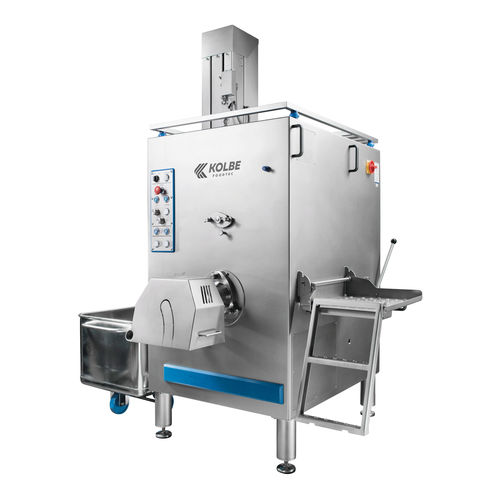

Industrial meat mixer grinder MW160-330

automatic

The biggest model of the MW-Series. Its outstanding hourly output and perfect cutting precision make the mixer mincer ideal applicaple in large scale operations, the industrial meat processing and wherever a hopper of 330 liters is needed, due to the batch size. The MW160-330 also is excellently suitable for continuous work and the processing of fresh parts of meat up to a temperature of -14°C. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Unger G160 Perforated plate-Ø 160 mm Hopper volume 330 Ltr. Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 18,5 kW Motor mixer drive / Protection system IP55 1,5 kW Nominal current at 400 V – Main drive 34,5 A Nominal current 400 V – Mixer drive 3,85 A Conductor size 10 mm² Fusing at 400 V (A lazy) 50 A External dimensions (W x D x H) 1921 x 1936 x 1922 mm Input height 1922 mm Lower housing heigt (with cover) 716 mm Noise level 68,8 db (A) Weight (net.) ~1000 – 1100 kg One speed for working worm and mixing arm / stainless steel machine / feeding hopper with safety frame / stainless lock nut / outlet protection cover / combi hook spanner / push-button-control / cable set for main connection / 4 height adjustable anti vibration metal-feet / built-in extendable footstep Mixing time preselection / increased motor capacity 22kW / variable speed (stepless) of working worm for 18,5kW or 22kW / precutter retain unit / tool trolley for equipment and tools / KOLBE dynamic separating system KDS160
