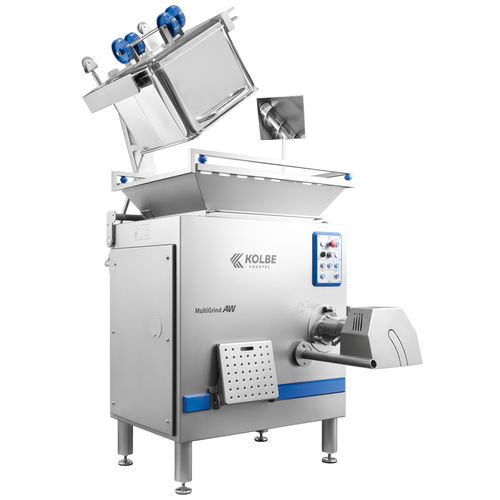

Meat mixer mincer AWM160-240

automatic

Cutting system Unger G160 Perforated plate-Ø 160 mm Total hopper volume ~360 Ltr. External dimensions (W x D x H) 1478 x 1529 x 1975 mm Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 30 (22) kW Motor feeding drive / Protection system IP55 1,5 kW Motor mixer drive / protection system IP55 1,5 kW Nominal current at 400 V – Main drive 54 (40,5) A Nominal current at 400 V – Feeding drive 3,1 A Nominal current at 400 V Mixing and loosening device drive (opt.) 3,1 A Conductor size 25 (16) mm² Fusing at 400 V (A lazy) 63 (50) A Input height 1978 mm Lower housing height (with cover) 734 mm Noise level 68,8 db (A) Weight (net.) ~1000 – 1100 kg Stainless steel machine / feeding hopper with safety frame / outlet protection cover / stainless lock nut / push-button-control / hydraulic worm ejection / socket wrench SW 24 / combi hook spanner / I-speed version / 4 height adjustable anti vibration metal-feet / feeding worm prefilling function / cable for main connection / mixing device (mixing arm) with separate drive / autoreverse function Precutter retain unit / variable speed (stepless) of working worm 30kW / mixing time preselection / hoist feed loader FD 200 / attached swivel arm feeding HFD 200 / tool trolley for equipment and tools / KOLBE dynamic separating system KDS160
