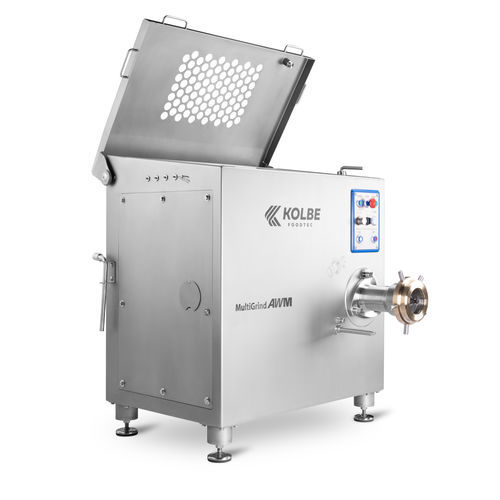

Meat mixer mincer AWM114-100

automatic

The AWM114-100 have a very compact design and can be placed directly against walls or between machines. The frontal operabilitiy not only ensures an ergonomic filling of the funnel, but also allows a very space-saving installation of the machine. As a compact alternative to the larger models of our automatic crossfeed grinders, AMW114-100 impresses with its high output capacity and powerful drive. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Unger D114 Perforated plate-Ø 114 mm Hopper volume 100 Ltr. External dimensions (W x D x H) 1248 x 1289 x 1320 mm Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 7,5 kW Motor feeding drive / Protection system IP55 1,5 kW Nominal current at 400 V – Main drive 1,5 A Nominal current at 400 V – Feeding drive 3,2 A Conductor size 6 mm² Fusing at 400 V (A lazy) 32 A Input height 1189 mm Lower housing height (with cover) 464 mm Noise level 70,8 db (A) Weight (net.) ~805 kg Stainless steel machine / stainless lock nut / push-button-control / worm ejection / socket wrench SW 24 / combi hook spanner / I-speed version / 4 height adjustable anti vibration metal-feet / feeding worm prefilling function / cable connection with CEE phase plug / mixing device (mixing arm) with separate drive / autoreverse function Mixing time preselection / variable speed (stepless) of working worm 7,5kW / outlet protection cover / tool trolley for equipment and tools / KOLBE dynamic separating system KDS114
