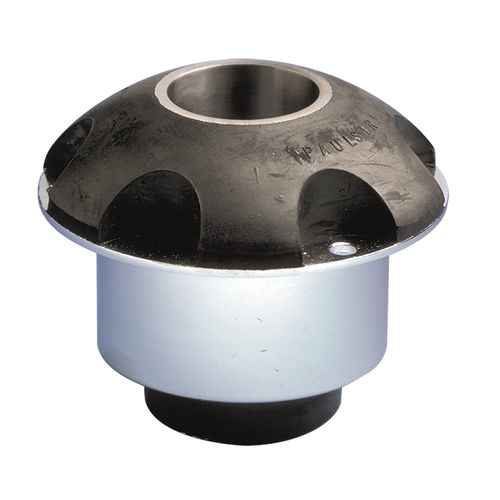

Flange anti-vibration mount S.C. series
metalrubber

flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
flange anti-vibration mount
Add to favorites
Compare this product


Characteristics

Configuration
flange
Material
metal, rubber
Static load

Min.: 1 daN

Max.: 2,600 daN

Diameter

Min.: 20 mm
(0.787 in)

Max.: 170 mm
(6.693 in)

Description

Anti-vibration mount, safe for mobile applications, full-width range. The S.C. mount comprises an annular section bonded between the inner tube and outer housing. The outer housing has a mounting flange (4 different types). Avantages ► Extensive range: 3 hardnesses of rubber for 20 existing types, allowing the mounting to be optimised as a function of the load and exciting frequency. Specifications The design of the S.C. mount gives the following basic characte-ristics: ► Axial elasticity four times higher than radial elasticity; ► The rubber works in shear; ► Progressive buffer against shocks or accidental overload, provided that a large metal washer is used to bear against the rubber dome; ► Can be used as a fail safe assembly when fitted as in shape 1.
