Sealing washer E3RP seriesflatrubber
Add to favorites
Compare this product
Characteristics
- Type
- sealing
- Configuration
- flat
- Material
- rubber
- Internal diameter
Max.: 44.5 mm
(1.75 in)Min.: 2 mm
(0.08 in)- External diameter
Max.: 83 mm
(3.268 in)Min.: 6 mm
(0.236 in)- Thickness
Max.: 14.5 mm
(0.571 in)Min.: 1 mm
(0.039 in)
Description

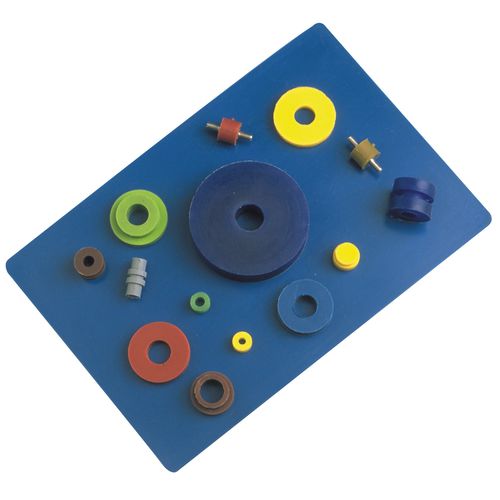

Flat and flanged washers.
These parts are usually supplied in VHDS (very high density silicone) rubber and the full reference should include:
► The letter S
► The appropriate grade which corresponds:
- to the youngs modulus of the rubber under static compression in accordance with ASTM D945 (ref. 33 to 77)
- or to the stiffness measured on a part (ref. 16 to 25)
