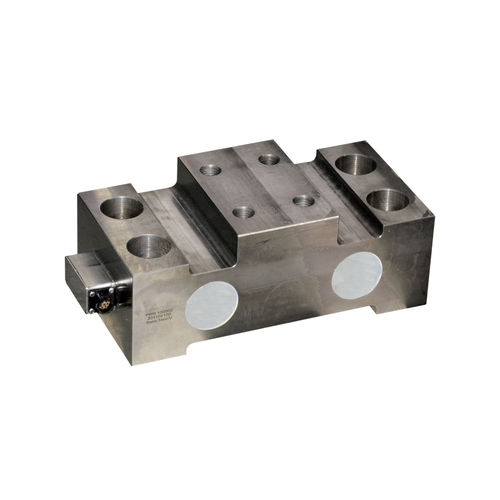

Double-ended shear beam load cell PRR

beam typestrain gaugestainless steel

The PRR double shear beam load cell, made of stainless steel with watertight protection, has a low profile and is perfect for working in hostile environments and heavy industries, such as the steel industry. It is insensitive to side loads, resistant to overloads up to 500%, has excellent linearity and precision characteristics and has a 6-pole connector for the electrical connection. The PRR load cell can be customized according to customer needs, for example the temperature is compensated up to 120 ° C but it is possible to request a cell for higher temperatures. Technical Specifications Rated load RL: 50, 100 t Combined error: ±0.15 % RO Repeatability: ±0.02 % RO Creep (20 minutes): ±0.03 % RL Safe overload: 200 % RL Ultimate overload: 500 % RL Ultimate sideload: 100 % RL Material: Stainless steel Degree of protection: IP66 Deflection: 0.35 mm Compensated Temperature: -10 ÷ +120 °C Temperature range: -20 ÷ +150 °C Temperature effect on zero balance: < ±0.005 % RO/°C Temperature effect on output: < ±0.005 % on output/°C Rated output RO: 1.0 mV/V ±0.1 % Zero balance: 5000 M Ohm Input resistance: 350 ± 20 Ohm Output resistance: 350 ±5 Ohm Recommended input: 2 ÷ 15 V
