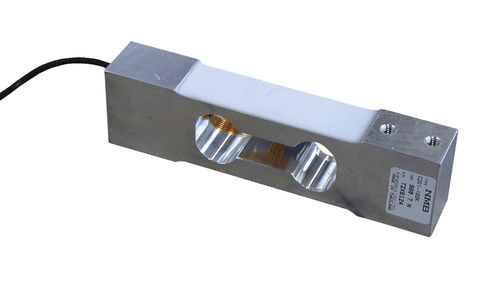

Beam type load cell C2G1

single-pointstrain gauge

The Off Center C2G1 load cell is capable of weighing while maintaining high precision and maximum reliability even with off-center loads and is particularly suitable for the construction of industrial and bench electronic scales, piece counters and packaging machines. The maximum dimensions of the applicable work plan are 300x300 mm. The off center cell C2G1 is equipped with a 4-conductor shielded cable. Technical Specifications Rated load RL: 6, 10, 12, 15, 20, 25, 30, 35, 50 Kg Repeatability: < ±0.02 % RO Creep (20 minutes): < ±0.02 % RO Full scale non-Linearity: ±0,015 Safe overload: 150 % RL Ultimate overload: 200 % RL Material: Alluminum alloy Degree of protection: IP64 Accuracy class: 3000 OIML (6000 OIML optional) Deflection: 0.17 ÷ 0.62 mm Compensated Temperature: -10 ÷ +50 °C Temperature range: -10 ÷ +50 °C Temperature effect on zero balance: ±0.004 % RO/°C Temperature effect on output: ±0.0012 % of load/°C Rated output RO: 2.0 ±0.2 mV/V Zero balance: 2000 MOhm Input resistance: 400 ÷ 450 Ohm Output resistance: 345 ÷ 355 Ohm Recommended input: 5 ÷ 12 Vdc/Vac
