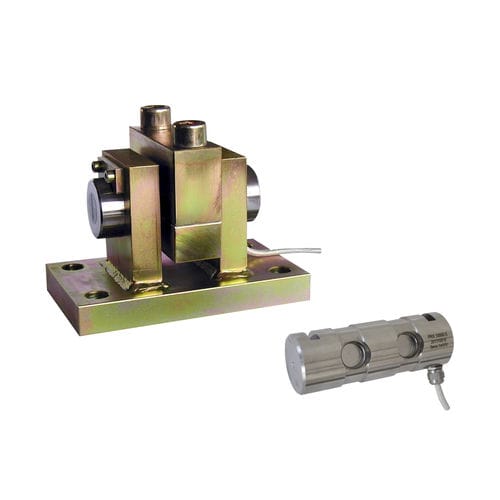

Shear beam load cell PRX HT

beam type1 mV/V

The PSPRX-HT load cell is a high-strength stainless steel load cell designed for measuring forces and weighing systems. The PSPRX-HT load cell has a strong protection against impacts and overloads and it is ideal for workplaces where high temperatures are present. The PSPRX-HT cell is insensitive to side loads and it works as a double shear beam load. Technical Specifications Rated load RL: 5, 10, 20, 40, 60, 80, 100 t Combined error: < ±0.1 % RO Repeatability: < ±0.02 % RO Creep (20 minutes): ±0.03 % RO Safe overload: 150 % RL Ultimate overload: 300 % RL Material: Stainless steel Degree of protection: IP68 Deflection: 0.4 mm Compensated Temperature: -20 ÷ +120 °C Temperature range: -20 ÷ +150 °C Temperature effect on zero balance: < ±0.005 % RO/°C Temperature effect on output: < ±0.005 % on output/°C Rated output RO: 1 mV/V ±0.1 % Zero balance: 5000 MOhm Input resistance: 350 ±20 Ohm Output resistance: 350 ±5 Ohm Recommended input: 5 ÷ 15 Vdc/ac
