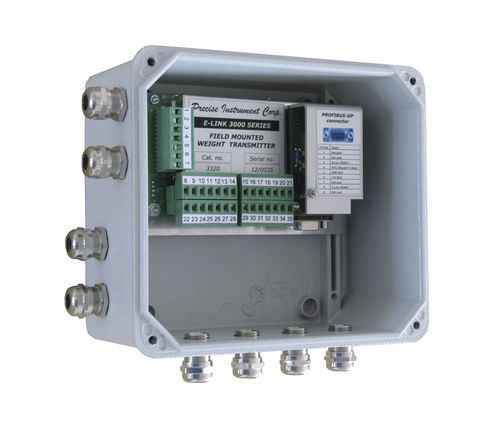

Field weight transmitter E LINK 3000

The weight transmitter E LINK 3000 can be integrated into any industrial regulation and supervision system. This weight instrument has 5 different electronic configurations and 5 different enclosures for every installation requirement. The weight transmitter E LINK 3000 can be configured from a PC, by using a dedicated software or directly from the Master via the communication protocol. Its main functions are: field and remote fault diagnostics, faulty cell emulation function with exclusion from the weighing system and automatic recalibration of the new load cell. The weight transmitter E LINK 3000 owns two serial ports: COM1: RS232 for parameter configuration from PC and COM2: RS485 with Modbus Protocol and Fieldbus. E LINK 3000 has 7-pole removable terminals (5 mm diameter) for electrical connection to load cells. Technical Specifications Input sensitivity: 0.003 µV/count Full scale non-Linearity: > 0.01% Gain drift: > 0.003% FS/°C A/D Converter: 24 bits Internal Resolution: > 16.000.000 points Temperature range: -10 ÷ +50°C Storage temperature: -20 ÷ +70 °C Excitation voltage: 5 Vdc Serial port: COM1: RS232 (for configuration parameteRS from a PC); COM2:RS485 Protocol Modbus RTU Power supply: 12 ÷ 24 Vcc Regulatory compliance: EN 61000-6-3, EN 61000-6-2 Dimensions: 130x100x60 mm (WxHxD) card of support for DIN rail Number of readings per second: 0.1 ÷ 72 based on the number of cells and on the digital filter value Input signal cells: -5 mV/V ÷ +5 mV/V
