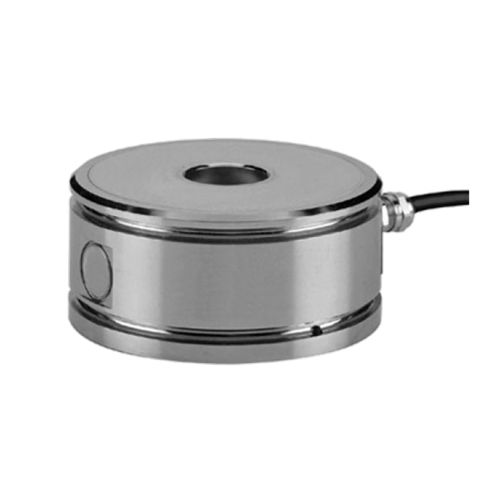

Compression load cell 220

button typefor hopperfor silos

The compression load cell 220 has been designed to operate in difficult and dangerous environments and it is suitable for weighing hoppers, tanks, silos and trucks. The load cell 220 is made of stainless steel and has a maximum capacity of 50 tons. The compression load cell 220 is used in industrial weighing and one of its strength is the easy installation. Technical Specifications Rated load RL: 5, 10, 20, 30, 50 t Combined error: 0.02 % RO Repeatability: ±0.01 % RO Creep (30 minutes): ±0.0170% on applied load Safe overload: 150 % RL Ultimate overload: 300 % RL Material: Stainless steel Degree of protection: IP68 Accuracy class: 3000 OIML, NTEP Compensated Temperature: -10 ÷ +40 °C Temperature range: -30 ÷ +70 °C Temperature effect on zero balance: 0.0010 % RO/°C Temperature effect on output: 0.0010 % on output/°C Rated output RO: 2 mV/V ± 0.1% Zero balance: ±2 % RO Insulation resistance: > 2000 M Ohm Input resistance: 1065 ±60 Ohm Output resistance: 1025 ±20 Ohm Recommended input: 5 ÷ 15 Vdc/ac Maximum supply voltage: 20 Vdc/ac Y = Emax/Vmin: 14000 Max number of intervals: 3000 Cable Lenght: 5m (5t), 10m (10 & 20t), 20m (30 & 50t)
