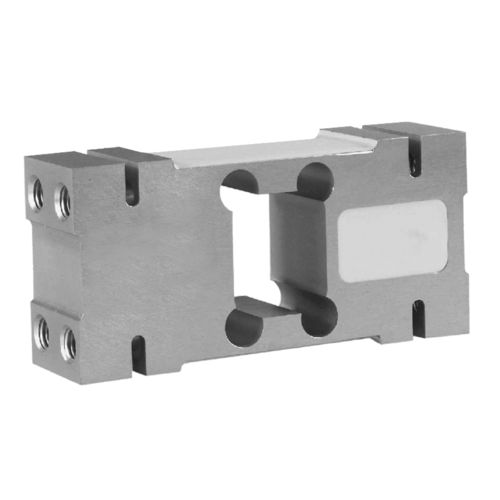

Torsion load cell PS ZTL

beam typeweighingaluminum

The off center load cell PSZTL, built in aluminum, is robust and precise and is ideal for large single-cell platforms. Its weight capacity can reach up to 2000 kg. The PSZTL single point load cell ensures precise weighing in all circumstances, even where the load is not positioned exactly in the center. The off-center cell is particularly used in the food packaging sector and for the construction of single-cell scales. The off center load cell PSZTL has a 6 meter long shielded cable with 6 wires. Technical Specifications Rated load RL: 1000, 2000 Kg Repeatability: ±0.01 % RO Input sensitivity: 2 mV/V ±10 % Creep (20 minutes): ±0.02 % RO Ultimate overload: 150 % RL Deflection: 0.8 mm Compensated Temperature: -10 ÷ + 40 °C Temperature range: - 35 ÷ + 65°C Temperature effect on zero balance: 0.0017 % °C Zero balance: ±1 % Insulation resistance: > 5000 MOhm Input resistance: 406 Ohm ±6 Output resistance: 350 Ohm ±3 Maximum supply voltage: 18 Volt Breaking load: > 300 % Temperature effect on full scale: 0.0014% °C
