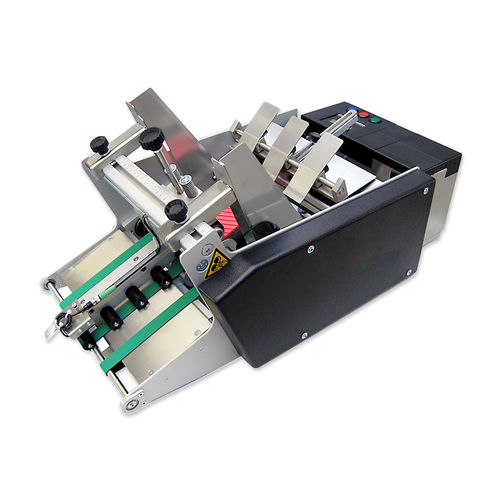

Friction paper feeder EF

magazine

FEAUTRES • Feeding width 235 mm standard • Modular, compact industrial machine design • Simple, clear and user-friendly • Single product feeding • Easy feeding of the products • Central air gap adjustment from 0.1 up to 5 mm • Missing sheet detection by product run-time monitoring • Min. stack monitoring in the magazine • Product magazine for loading is easily accessible • Individual adjustable stack support • Infinitely adjustable feeding speed up to 40 m/min • Drive actuated via DC motor • Ruggedly designed machine frame, anodised aluminium, non-corrosive steel • Low noise level • Specification according to EC machinery directive, CE-conformity CONTROL • 4-line LC-Display, with parameter selection by buttons • User guidance and status display in different languages (German, English Standard, Other languages selectable) • Etana Microprocessor control • Protection type IP 40 • PLC-Interface, 15 pins • Self-control functions with diagnosis information • Fault message indication by way of display • Preset of the start pulse (high/low) • Product length setting for missing sheet and doublesheet control • Product stop position adjustable • Electrical and electronic connectors of plug-in type, protected inside the housing OPTIONS • Piece counter preselection with SET / ACT comparison • electable operation mode cycled or continuous • Signal lamp
