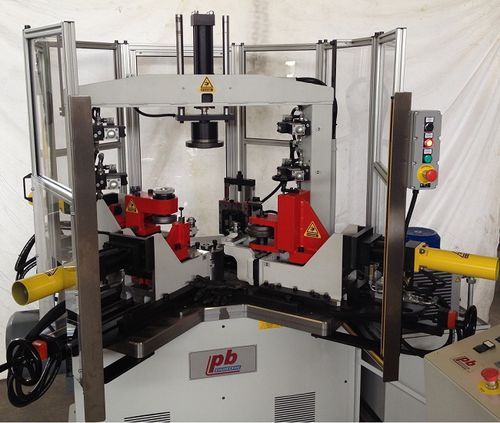

Finishing finishing machine R2

punchingfor cylindrical partssingle-spindle

Machine for machining workpieces with circular and non-circular shape and thickness up to 6 mm. Technical features Machine has Pneumatic unit , hydraulic unit and unit with hydraulic movement by axis control . Maximum diameter: Customizable Electric Power : Variabie according of working Number of units of work: 3 or 4 For more information please contact our sales office Insights Management of spindle speed with inverter or gearbox. Control of the position of the spindle by electrical axis for the execution of any of punching flanges or edges. The sector are tank heads with big thickness, fain and wine. Countertop for 3 or 4 units of work. Tailstock for clamping the workpiece. A cylinder is coaxial to the spindle for the management of the group expander / ejector. The management of work cycles is with touch screen operator panel on the control console and possibility to manage operating units, tailstock, ejector, expander, speed and inverter 100 programm that can be managed by time or rpm. Possibility to run with semi-automatic or automatic scrap evacuation systems and loading and unloading. Machine can be supplied, depending on the workpiece, both in the version pneumo-hydraulic or hydraulic unit. Ability to manage the hydraulic axes CNC with proportional valves. APPLICATION Curling on external flange Curling Vertical beading External beading or Ribbing C shape Beading Inside beading for tank Beading on flange Vertical and horizontal beading Conical Beading Inside Beading Ribbing Beading for Diameter Reduction External flange Inside flanging "Z" shape by inside flanging Z shape by expanding system Cylindrical expanding and flanging External flanging
